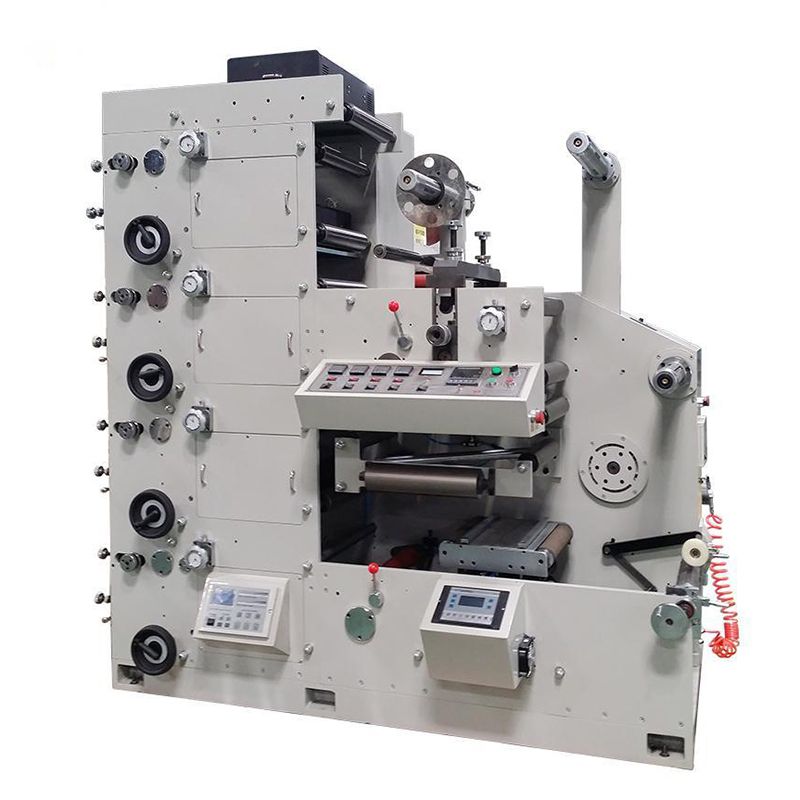

Stack Flexo Label Printing Machine, DRBY-320
Flexographic printing press for label & narrow web
Our stack flexo label printing machine is an ideal printing equipment for narrow web and labels and more. This printing machine offers 1 to 8 color printing options, featuring a simple structure, wide printing range, eco-friendly ink, fast printing speed, easy operation, and maintenance. This is the best choice for factories to print small to medium-scale invoice, paperboards, and labels.

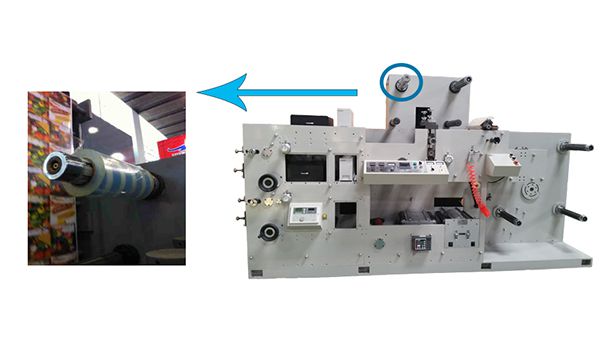

Our stack flexo label printing machine can realize whole-process label printing, from material feeding, printing, drying, coating, laminating, forming, die-cutting, to rewinding and waste collection, all in one machine, resulting in high efficiency, low cost, and excellent cost-effectiveness.
Request a Quote
Materials
Applications
Machines
Features
Details
Optional
Applicable Materials
A wide range of printing materials are applicable for our stack flexo label printing machine, including self-adhesive paper, self-adhesive film, composite film, paper, OPP, aluminum foil, CPP, PET, and etc.

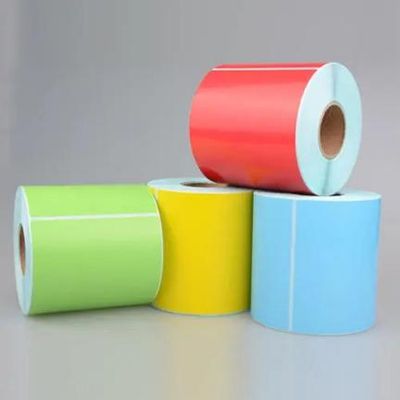

Self-adhesive paper, self-adhesive thermal paper

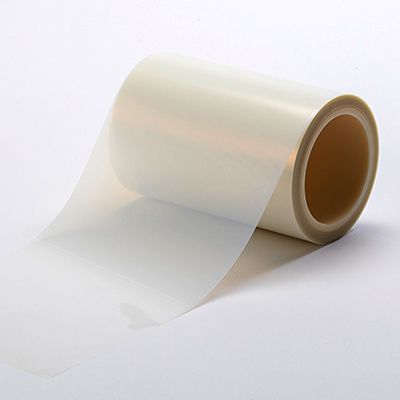

Self-adhesive film

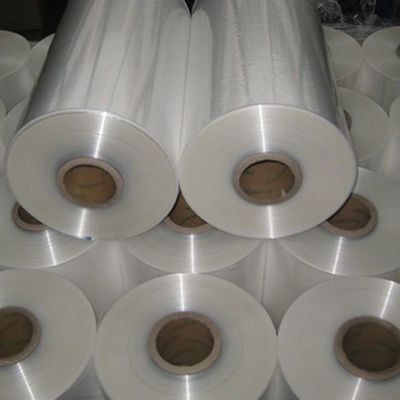

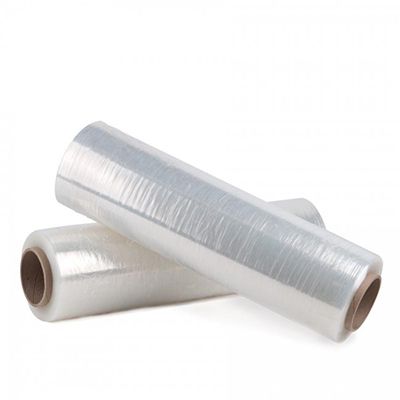

Plastic film
Composite film

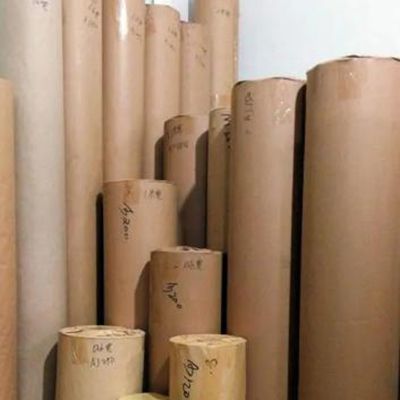

Kraft paper

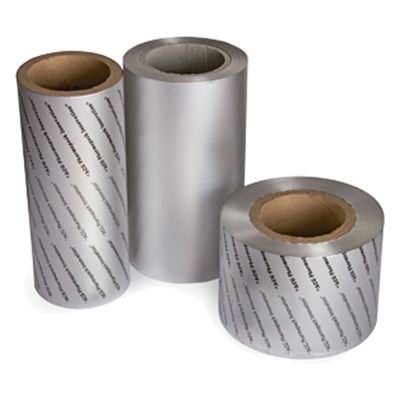

Metalized film

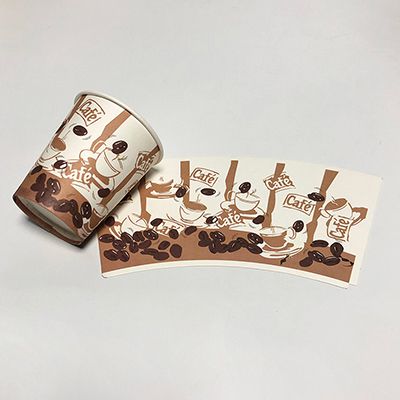

Paper cup blank
Applications
Our label printing machine can be used in label printing for the pharmaceuticals, food, daily necessities, cosmetics, and more.
Our Models

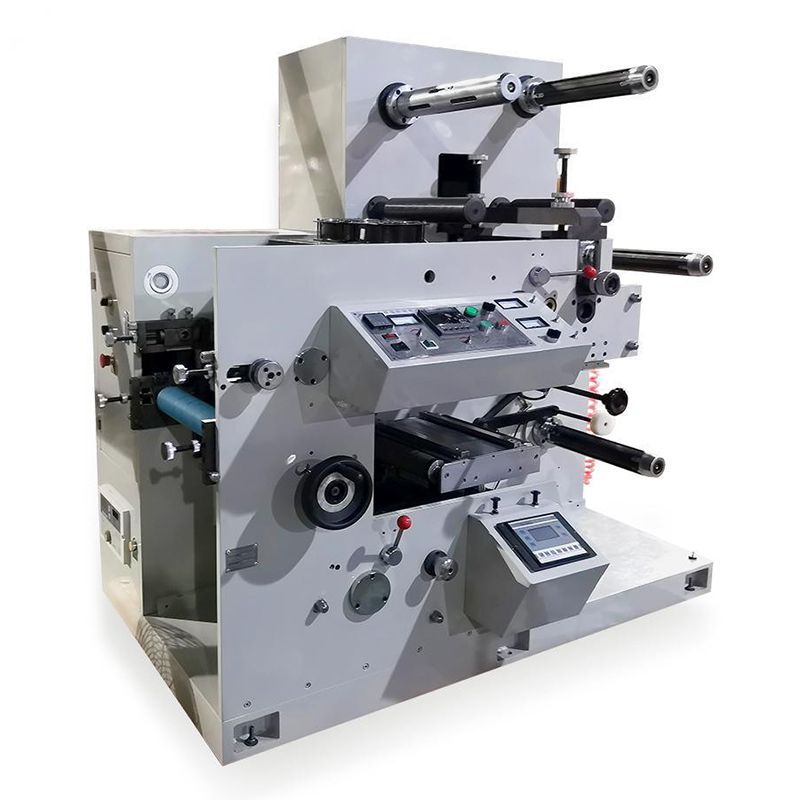

1-Color Stack Flexo Printing Press
Model: DBRY-320-1C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 1
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.1m*1.3m*1.8m
Weight: 1,500kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry

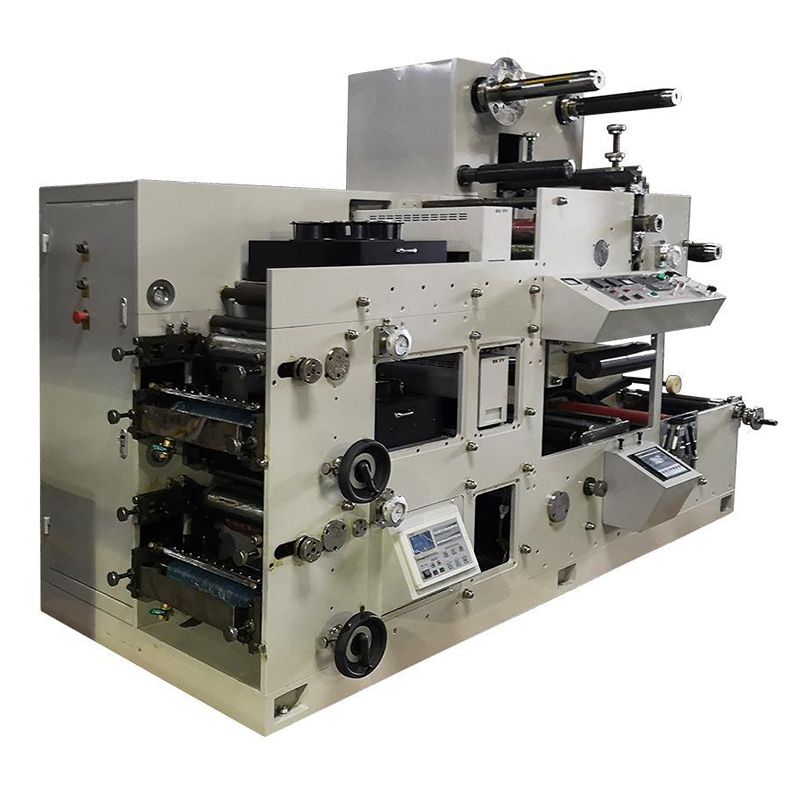

2-Color Stack Flexo Printing Press
Model: DBRY-320-2C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 2
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*2.0m
Weight: 2,000kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry
3-Color Stack Flexo Printing Press
Model: DBRY-320-3C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 3
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*2.0m
Weight: 3,000kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry
4-Color Stack Flexo Printing Press
Model: DBRY-320-4C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 4
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*2.2m
Weight: 3,500kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry

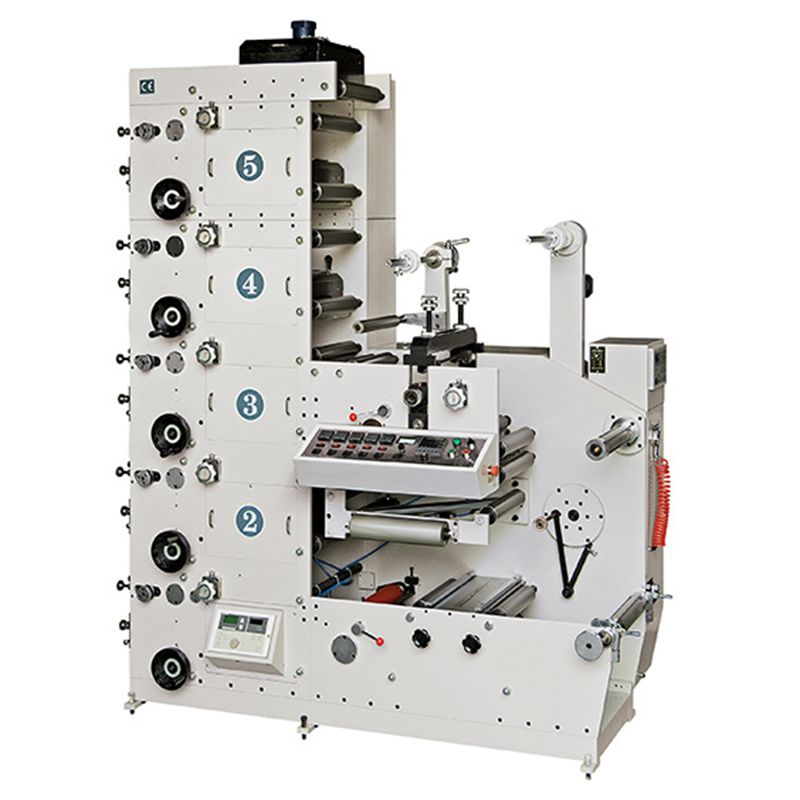

5-Color Stack Flexo Printing Press
Model: DBRY-320-5C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 5
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*2.7m
Weight: 3,800kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry
6-Color Stack Flexo Printing Press
Model: DBRY-320-6C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 6
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*3.2m
Weight: 4,000kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry
7-Color Stack Flexo Printing Press
Model: DBRY-320-7C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 7
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*3.6m
Weight: 4,500kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry

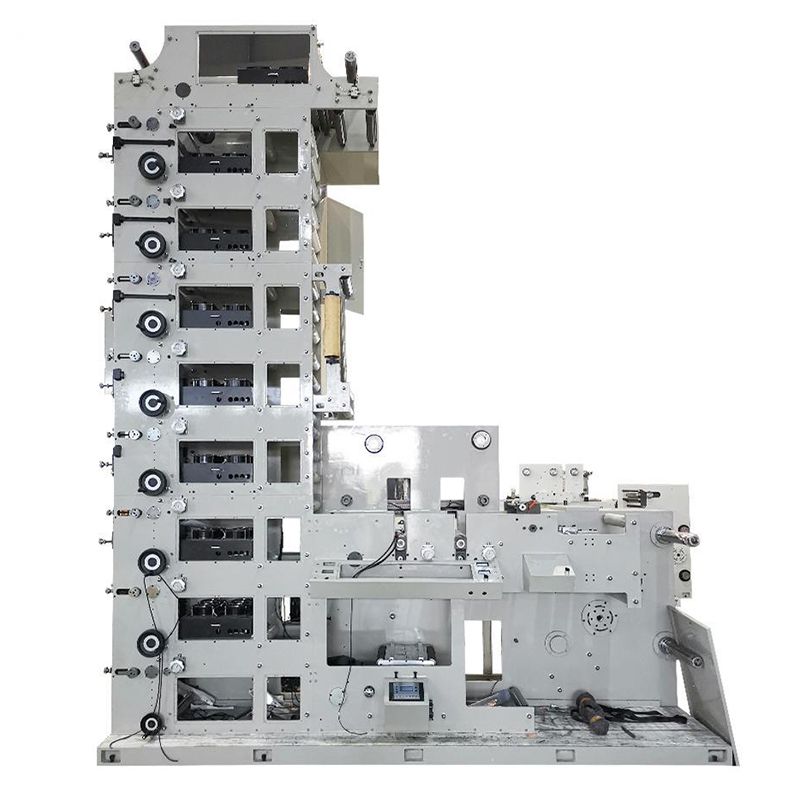

8-Color Stack Flexo Printing Press
Model: DBRY-320-8C
Printing Speed: 55~80m/min
Maximum Substrate Width: 350mm
Maximum Printing Width: 320mm
Minimum Printing Width: 35mm
Maximum Unwinding/Rewinding Diameter: 600mm
Printing Color: 8
Accuracy: ±0.10mm
Dimensions (L*W*H): 2.3m*1.35m*4.1m
Weight: 5,000kg
Dryer Power: 3.0kw
Voltage: 380V,50Hz
Inquiry
Features
The main motor features variable frequency stepless speed adjustment, imported from reliable overseas suppliers.
Unwind unit, traction unit, and rewind unit are controlled by magnetic powder brakes, clutches, and automatic tension detectors.

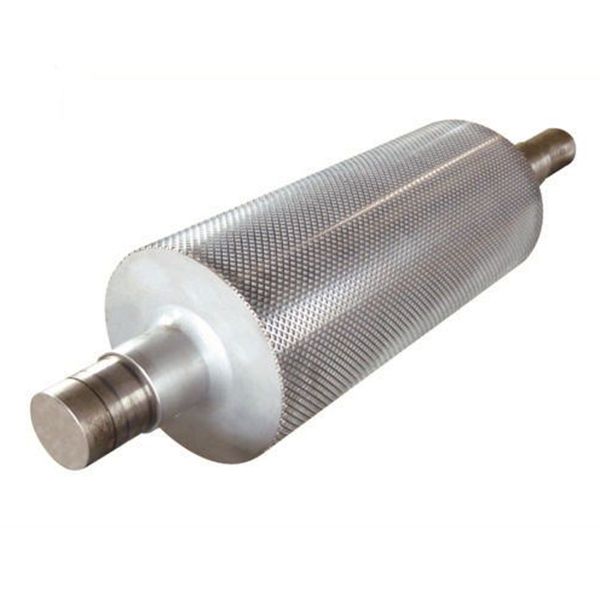

This label flexo printing equipment is equipped with highly efficient ceramic anilox rollers, featuring wear resistance, rust prevention, and long service life.
The printing unit adopts plate-to-plate registration, allowing each printing unit to print independently without affecting other printing units.
All printing units are equipped with infrared dryers, with an option for UV system.
The ink roller can automatically disengage when the machine stops, maintaining a low-speed operation to prevent ink from drying.
Unwind and rewind units use air expanding shafts, making material changes and unloading easier.
Details

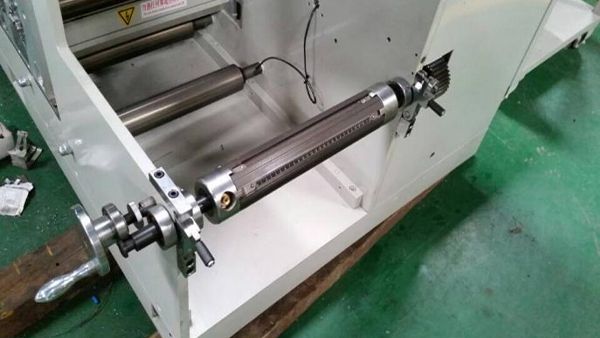

Unwinding Unit
Standard cantilever unwinding station with a maximum unwind diameter of 600 mm
76 mm (3") air shaft
Electromagnetic powder brake

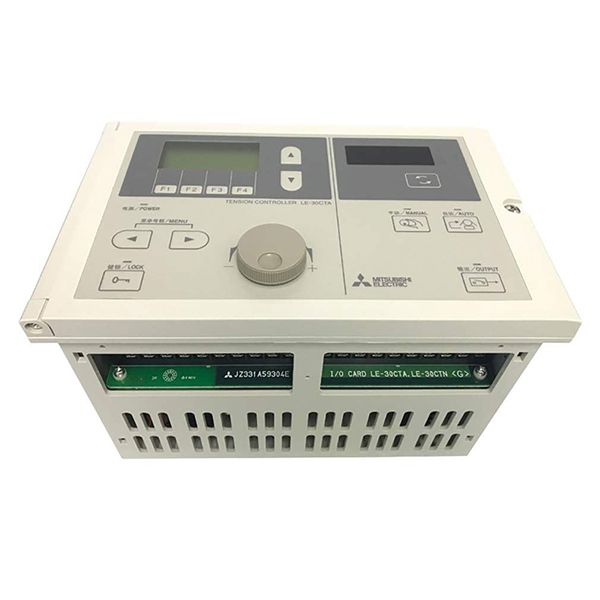

Automatic tension control
No roll followers or external sensors need to be adjusted or maintained, helping maintain stable unwinding tension
Web Guide System
EPC system keeps the web in the correct lateral position before it enters the printing station
Ultrasonic web guide system can detect transparent materials
Web guiding accuracy: ±0.1 mm

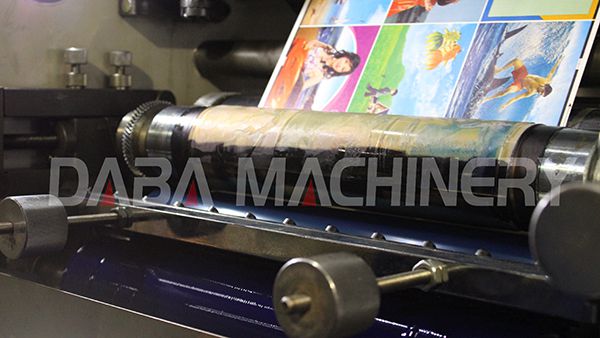

Printing Unit
Printing width: 320 mm
Maximum printing area: 320 mm × 580 mm
Printing repeat range: 178–580 mm (56T–182T)
The printing unit is driven by a 55 kW motor and can be controlled independently from the control panel
Gear pitch: 1/8 CP
Printing plate thickness: 17 mm or 114 mm
Double-sided tape thickness: 038 mm (3M)
Each printing station includes a metering roller/fountain roller, ceramic anilox roller, printing roller, and scraper blade
360° printing registration adjustment

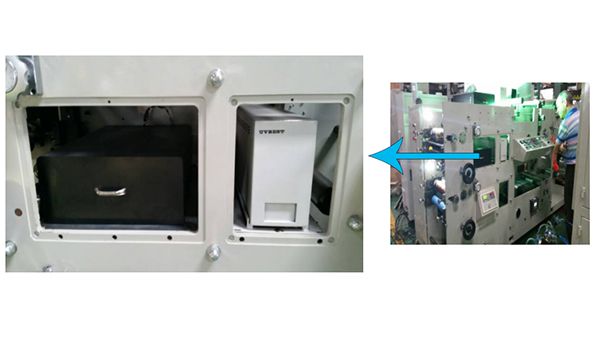

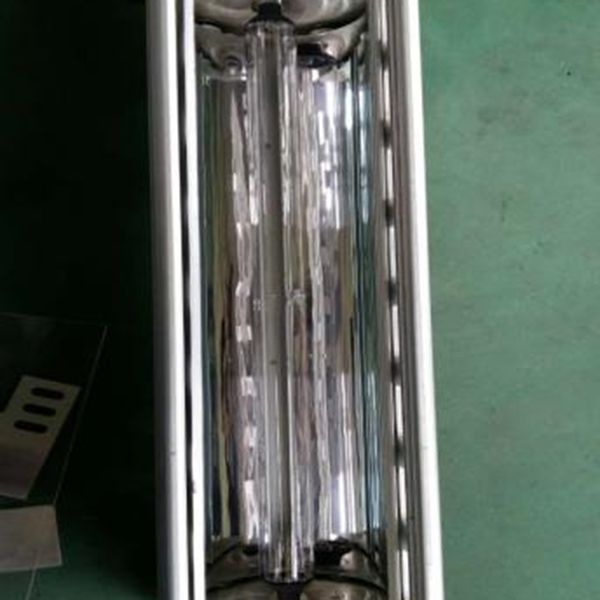

Heating Oven
Each printing unit is equipped with one IR heating oven; UV drying is optional
The heating oven is installed above the printed material
Separate access windows are provided for the IR oven and UV oven, making UV installation easier without affecting IR oven power or drying range. This also helps better protect the service life of the UV oven.

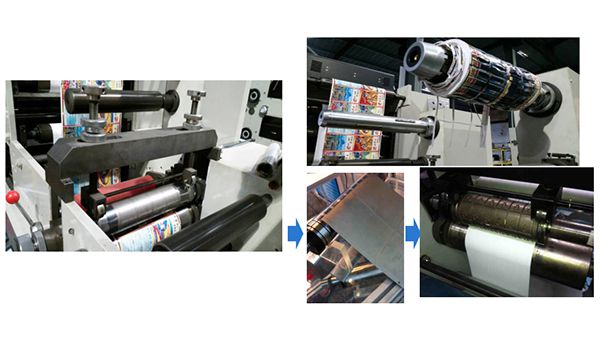

Die Cutting Unit
Gear pitch: 1/8 CP, 20° pressure angle
Precision-ground steel die plates for the 320 mm (1275″) model
A driven capstan roller with adjustable tension control supports stable matrix stripping and high-speed operation, even when matrix rewinding becomes unstable
Matrix Remove Unit
Matrix/waste rewind diameter: 400 mm (1575″)
76 mm (3″) air shaft for waste rewinding
Snowball matrix removal system continuously winds die-cut waste into spherical or clumped rolls for efficient waste removal
Slitting Unit
Equipped with 8 rotary knives
Special blades can be customized according to product requirements
Control Panel
Includes power supply, stop button, start button, and emergency stop
Temperature controller for each heating oven
Anilox roller rotation button for each printing station
Length counter and speed controller

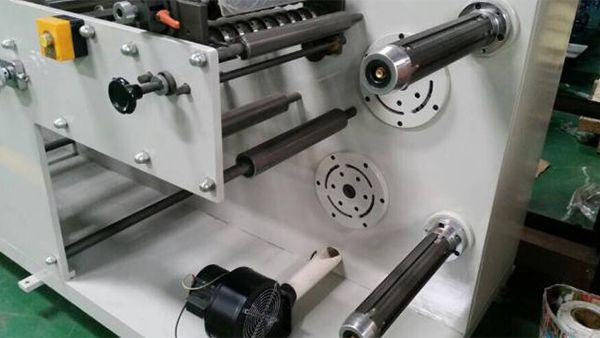

Rewinding Unit
Maximum rewind diameter: 600 mm
76 mm (3") quick-change air shaft
Electromagnetic powder clutch
Automatic tension control keeps rewinding tension stable and helps produce clean roll edges
