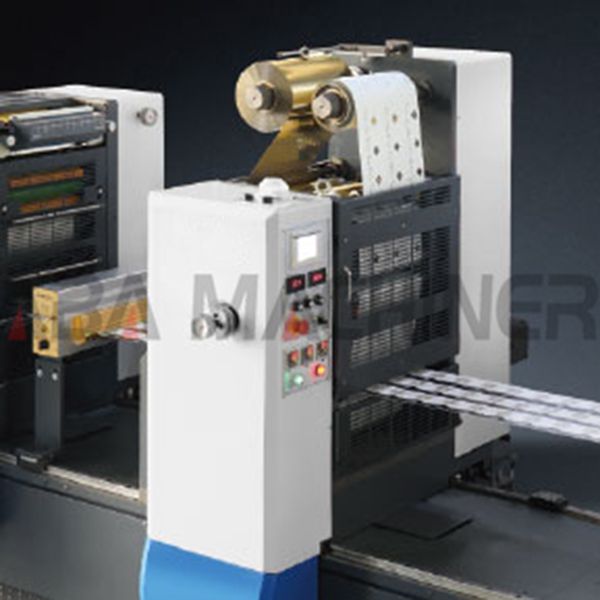

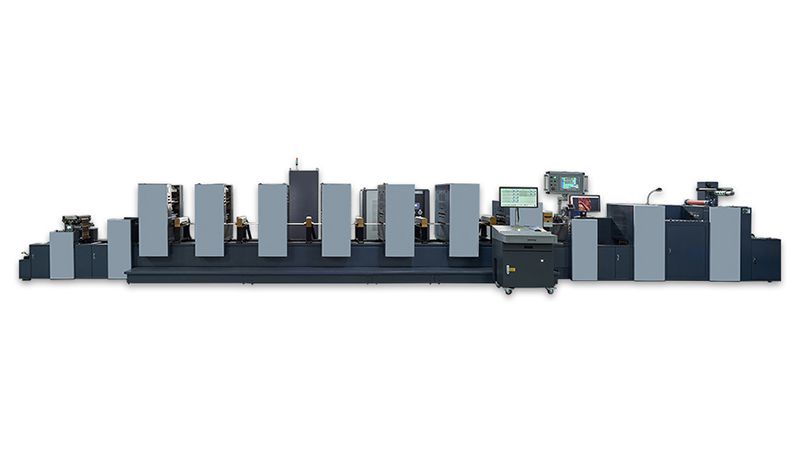

Daba Machinery presents offset printing press that can achieve a ultra-large printing area of 300mm*350mm for labels. It offers a maximum printing speed of 180 meters per minute with 4- to 10-color printing options, ensuring stable and consistent color results. Optional units include varnishing, cold foil stamping, and die-cutting units, providing cost-saving benefits with easy operation and maintenance.
Request a Quote
Applications
All printing substrates such as paper, metal sheets, cardboard, glass sheet and vinyl.
Applicable Materials
Label printing for color magazines, books, advertisement, name cards, and other commercial uses.
Features
The intermittent label printing machine is equipped with the latest servo control system to ensure stable and precise material gripping.
Intermittent printing on PS plates meets the high-end label requirements, short or long, making it the best choice for printing high-quality labels at the lowest production cost.
Printing roller replacement is unnecessary.
Specifications
Model
DBJY-320
DBJY-450
Maximum Substrate Width
320mm
320mm
Maximum Printing Width
300mm
300mm
Maximum Printing Length
350mm
350mm
Maximum Printing Speed
50~180RPM
50~150RPM
Maximum Unwinding Diameter
700mm
700mm
Maximum Rewinding Diameter
600mm
600mm
Printing Color
4- to 10-color
4- to 10-color
Power Supply
Three-phase, 380V
Three-phase, 380V
Total Power
33.6KW (excluding UV curer)
40KW (excluding UV curer)
Dimensions (L*W*H)
10550* 1600 * 1800mm
11150* 1600 * 1800mm
Net Weight
9500KG
11500KG
Details

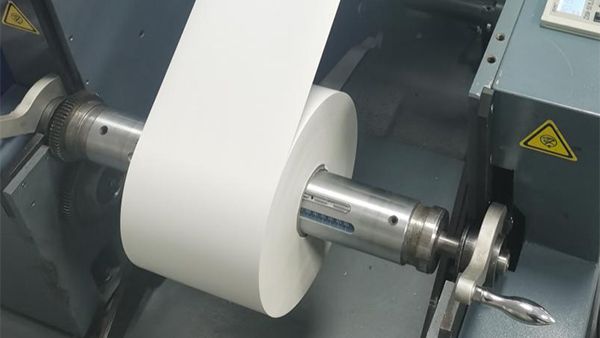

Unwinding Unit
Servo-driven unwinding unit with pneumatic control
Maximum unwinding diameter: 1000 mm
1 × 3-inch air shaft
Equipped with 2 servo motors
Automatic tension controller
Web Guide
Provides high-precision web correction during material feeding
Helps keep the paper web running straight and stable

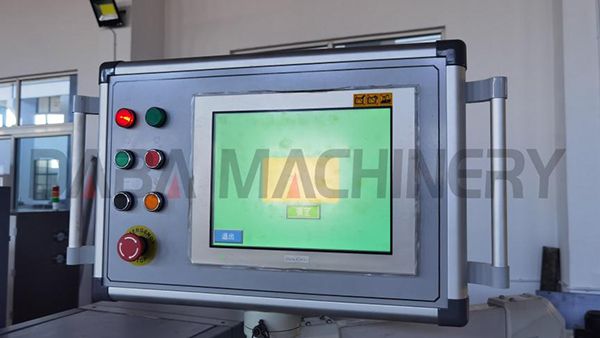

Control Panel
Touch LCD screen with a faster CPU
Independent touch screen for each printing station
Powerful human-machine interface for easier operation
Multi-guide inspection display interface

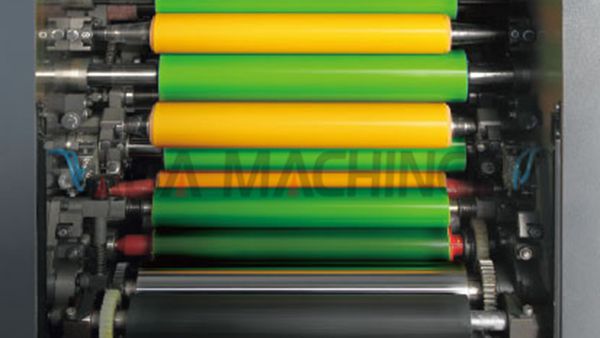

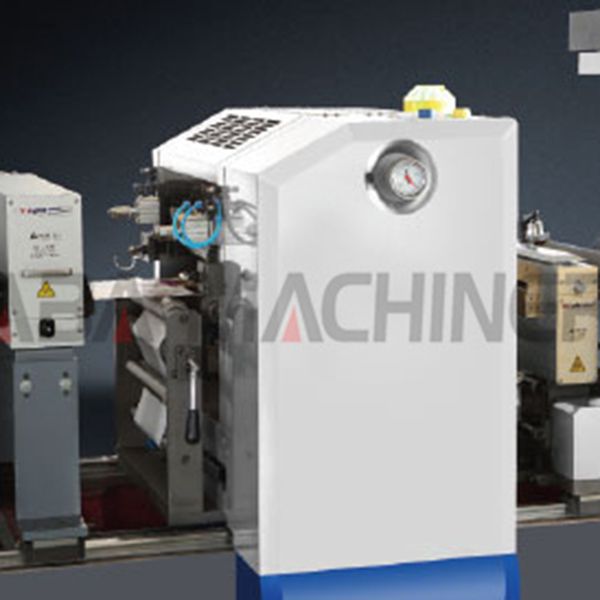

Printing Station

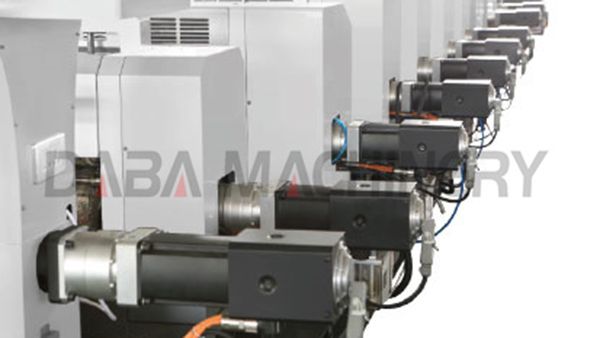

Each printing station is equipped with 5 servo motors
Standard configuration includes 12 ink control adjustment zones; each zone controls a 25 mm printing area
Each printing station is equipped with a separate touch-panel controller
Each printing station is equipped with an LED UV dryer
Unwinding Unit
Web Guide
Control Panel
Printing Station

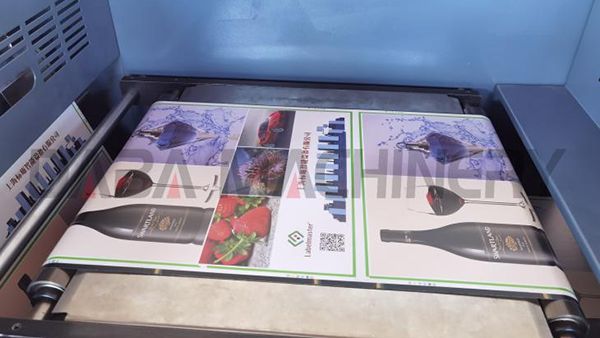

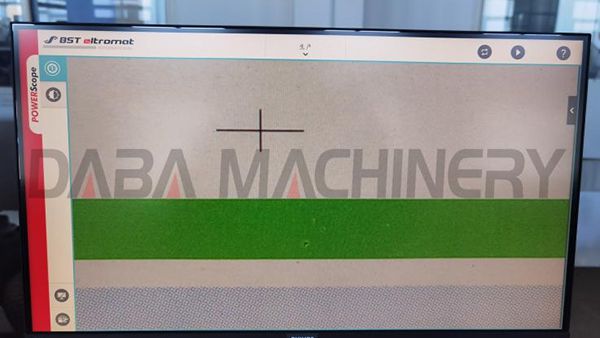

BST Camera Inspection System
Rewinding Unit
