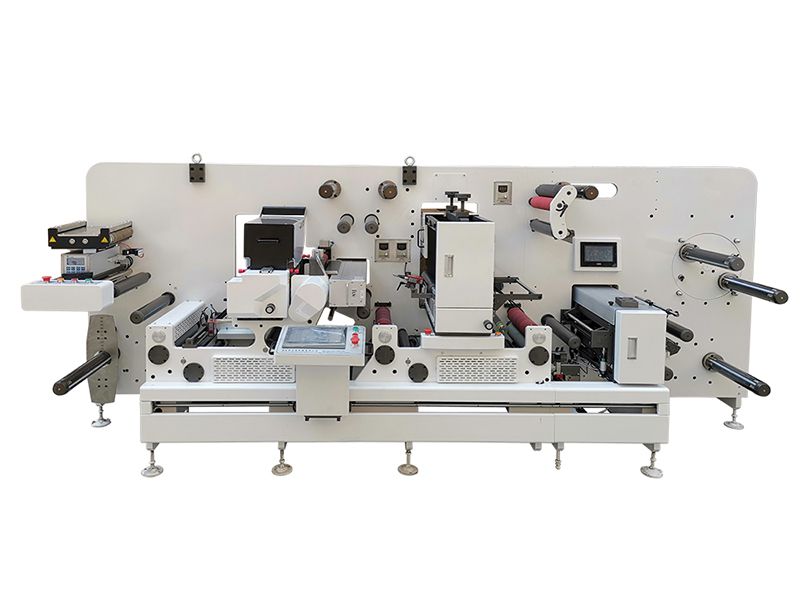

The label printing, die cutting and slitting machine by Daba Machinery features the latest full rotary/semi-rotary die-cutting switch-ability. The label finishing machine operates at a maximum speed of 120m/min for full rotary die-cutting and 60m/min for semi-rotary die-cutting. With a variety of optional accessories available, the finishing machine can meet diverse customer needs, including the addition of inspection systems, cross-cutter, IML die-cutter, turret rewinder, etc.
Request a Quote
Applicable Materials
Thermal paper, self-adhesive labels, non-woven fabrics, plastic films, etc.
Applications
Suitable in deep processing of electronic, automobile, medical and printing products.
Features
Each component is equipped with high-quality Panasonic servo motors to ensure stable and efficient machine operation.
The label finishing machine is equipped with flexographic printing unit, intermittent die-cutting unit, slitting unit, etc. The machine is capable of performing cold foil stamping, varnishing, laminating, and printing for flexo printing tasks.
Advanced servo control system and user-friendly operator panel significantly enhance product quality and production efficiency.
Utilizing the latest full rotary and intermittent rotary exchange technology, suitable for digital printing label processing.
Specifications
Model
DBGS-370
DBGS-320
Maximum Substrate Width
370mm (14.56")
320mm(12.60”)
Maximum Unwinding Width
800mm (31.5")
800mm (31.5")
Maximum Rewinding Width
800mm (31.5")
800mm (31.5")
Maximum Flexo Printing Width
350mm (13.77”)
350mm (13.77”)
Maximum Die Cutting Width
350mm (13.77")
350mm (13.77")
Maximum Speed (Full Rotary)
120m/min
120m/min
Minimum Speed (Semi-rotary)
60m/min
60m/min
Maximum Flexo Printing Speed
60m/min
60m/min
Printing Cylinder (Optional)
80T-210T
80T-210T
Printing Cylinder (Standard)
140T
140T
Self-adhesive Die Cutting Accuracy (First Layer)
±0.15mm
±0.15mm
Die Cutting Accuracy
±0.25mm
±0.25mm
Die Cutting Positioning
Color sensor
Color sensor
Magnetic Cylinder (Optional)
80T ~ 210T
80T ~ 210T
Magnetic Cylinder (Standard)
140T
140T
Total Power
19 ~ 21kW
19 ~ 21kW
Air Pressure
0.6 kPa
0.6 kPa
Rated Voltage
380V, 50Hz
380V, 50Hz
Rated Current
50A
50A
Weight
3200kg
3200kg
Details
Unwinding Unit
(Panasonic Servo Motor Driven)
3-inch air shaft (other sizes available)
Unwinding tension controlled by a vector motor

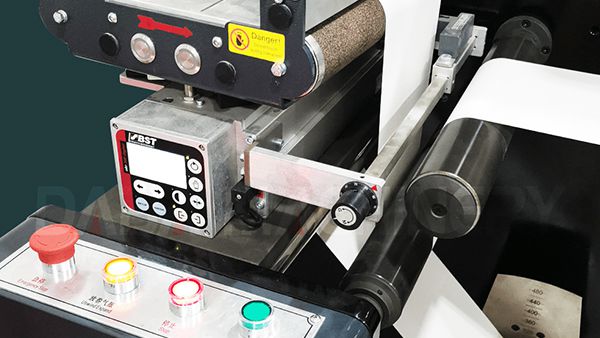

Web Guide
Servo-driven unwinding and web correction system
Compensates for minor web deviations during operation

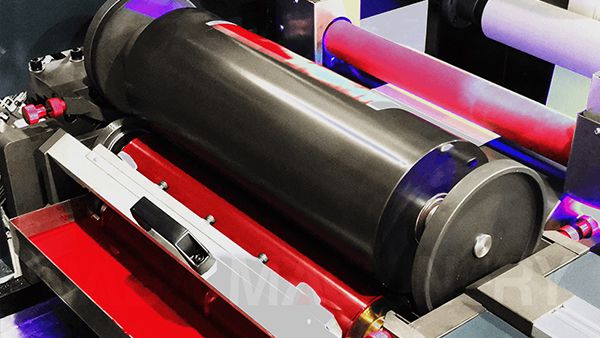

Flexo Printing Unit
Full-rotary / semi-rotary flexo printing station × 2
Standard 176T printing cylinder × 2 (other sizes are available)
Ceramic anilox cylinder for each station
UV dryer for each station
Cooling roller for each station
Color tracking sensor for each station

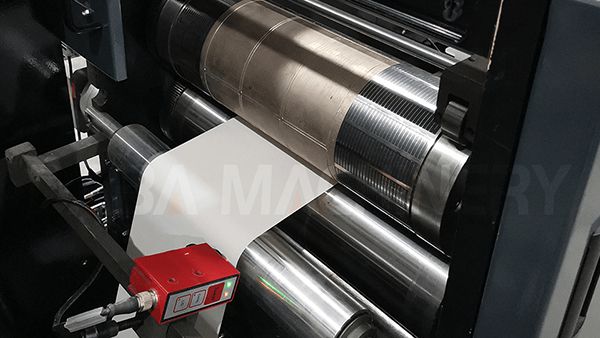

Intermittent Die-Cutting Unit
Supports both full-rotary and semi-rotary die-cutting modes
Full-rotary mode provides higher die-cutting speed for blank labels

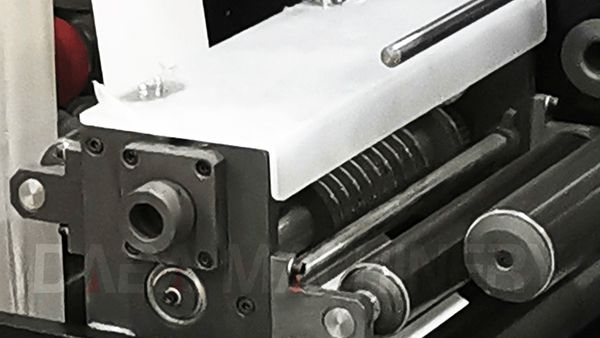

Slitting Unit
Equipped with rotary blades and razor blades
8 sets of rotary blades and 8 sets of razor blades

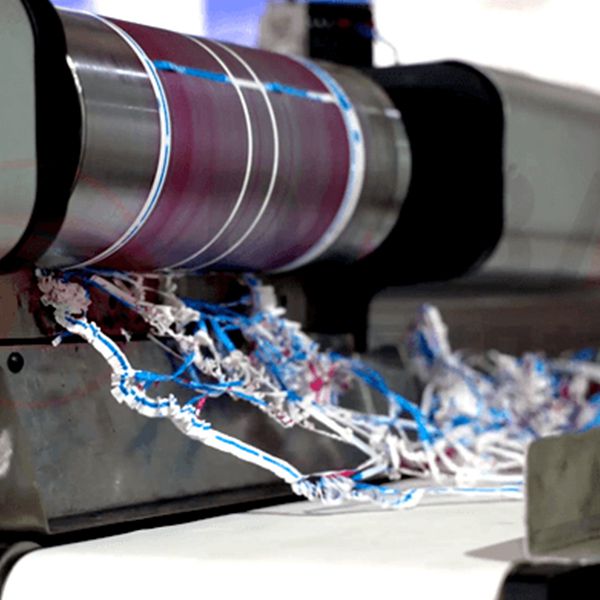

Suction fan for waste removal
Scale-marked roller for manual slitting width adjustment
Unwinding Unit
Web Guide
Flexo Printing Unit
Intermittent Die-Cutting Unit
Slitting Unit

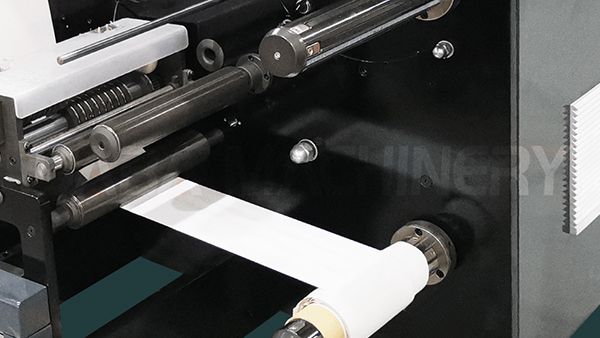

Rewinding Unit
