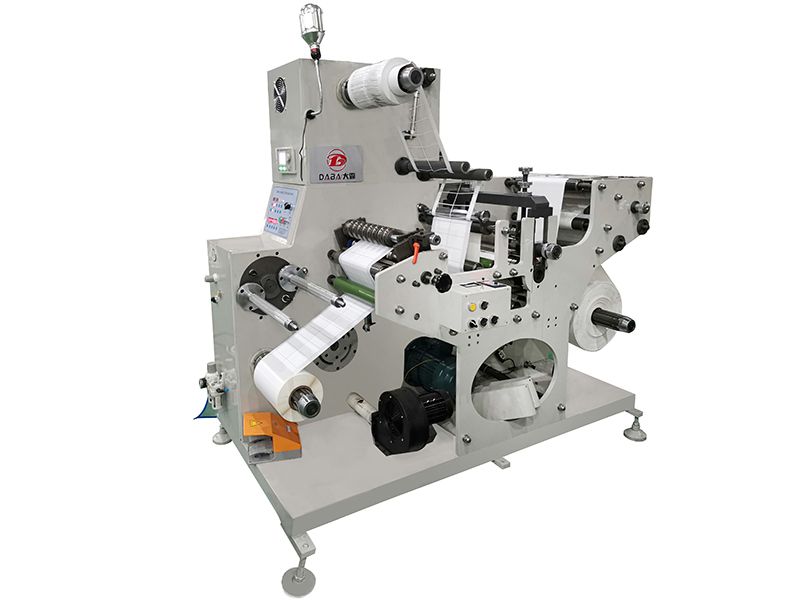

Rotary Die Cutting Machine, DBFQ-320B

Label converting machine

Rotary Die Cutting Machine, DBFQ-320B

Rotary Die Cutting Machine, DBFQ-320B

Label converting machine

Daba Machinery provides slitter rewinder added with a full rotary die-cutting system, suitable for die-cutting, laminating (optional), and slitting of blank adhesive labels. The rotary die cutting machine features functions of automatic meter counting, auto-stop, and photoelectric edge correction.

Request a Quote
Applications

Packaging, electronics, leather clothing, etc.

  • Applications
  • Applications
  • Applications
  • Applications
  • Applications
  • Applications
Applicable Materials

Suitable for paper, sandpaper, tapes, protective films, copper foils, aluminum foils, felt pads, fabrics, OPP, PE, PVC, PET, etc.

Features
  • Steel-coated frame ensures sturdiness and durability.
  • Electronic components are integrated within the machine frame.
  • Two ways of adjusting unwinding tension: by magnetic powder clutch or by manual.
  • Axial flow fan is equipped for disposing waste materials.
  • Minimum slitting width of 20mm.
  • Dual photocells control the unwinding process with edge guiding and automatic correction, which ensure accurate material positioning.
  • The drive motor includes a pressure roller and rubber roller to increase friction and material compaction, resulting in tighter rewinding.
  • Pressure of the roller is adjustable.
Specifications
Model DBFQ-320B
Slitting Speed 120m/min
Die-cutting Speed 120m/min
Maximum Substrate Width 320mm
Maximum Unwinding Width 700mm
Maximum Rewinding Width 480mm
Die-cutting Length 178-470mm (7-8.5 inches)
Dimensions (L*W*H) 1800mm*1100mm*1500mm
Weight 1200kg
Power Supply 380V/220V 50HZ (customizable)
Details

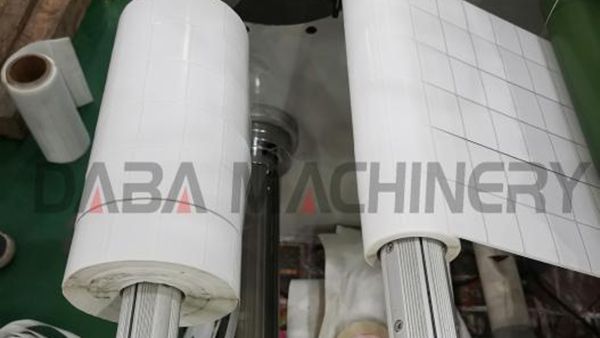

  • Unwinding Unit
    Unwinding Unit

    Automatic changeover saves time and labor

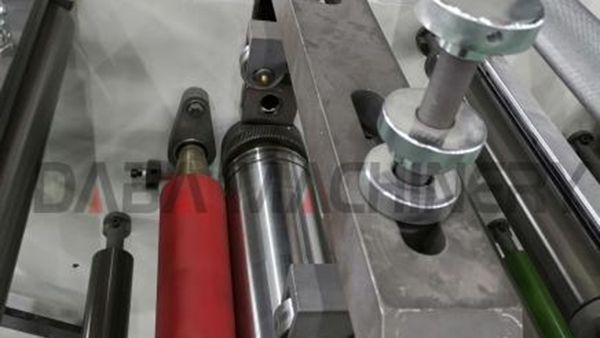

  • Die-cutting Station
    Die-cutting Station
    • Die-cutting Length: 178~470mm (7-18.5 inches)
    • Rotary feature allows for top-to-bottom die-cutting
    • Adjustable waste rewinder
    • Magnetic powder clutch
    • 3-inch air-expanding shaft

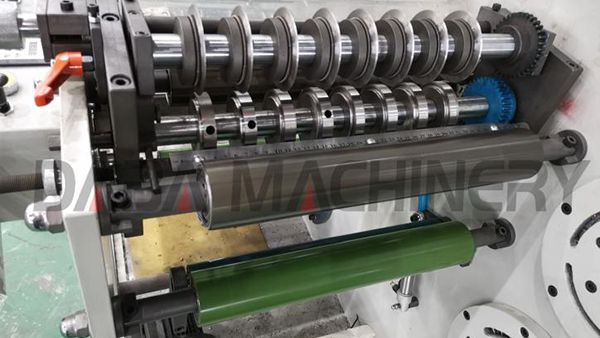

  • Slitting Station
    Slitting Station
    • Round/Square slitter optional
    • Minimum Slitting Width: 17mm
    • 8 sets of slitters

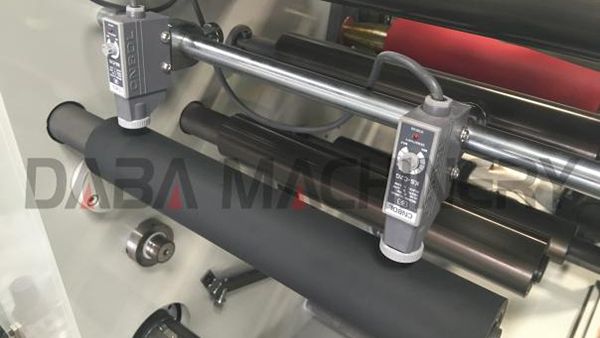

  • Guiding Rail
    Guiding Rail
    • Two photoelectric sensors

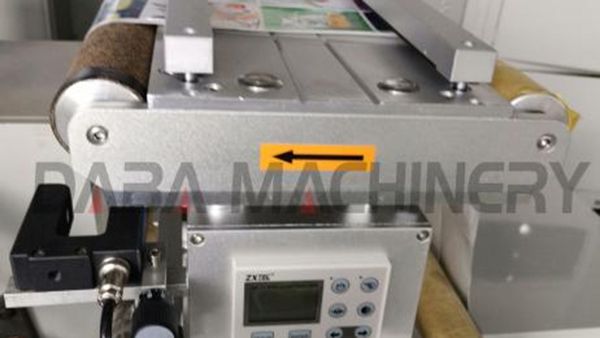

  • Splicing and Alignment Correction Station
    Splicing and Alignment Correction Station

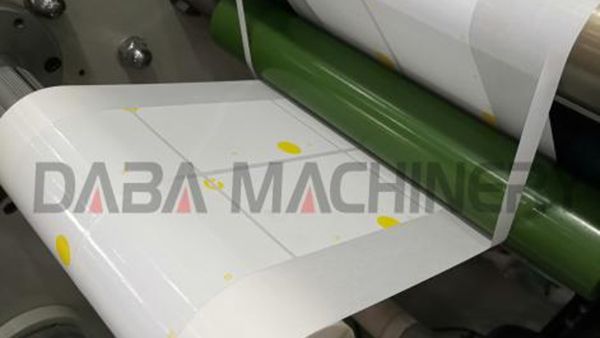

  • Waste Rewinding Unit
    Waste Rewinding Unit
Optional
  • Die-cutting module
  • One extra set of slitters
  • Laminating system
  • Air-expanding shaft: 1-inch, 1.5-inch, 3-inch
