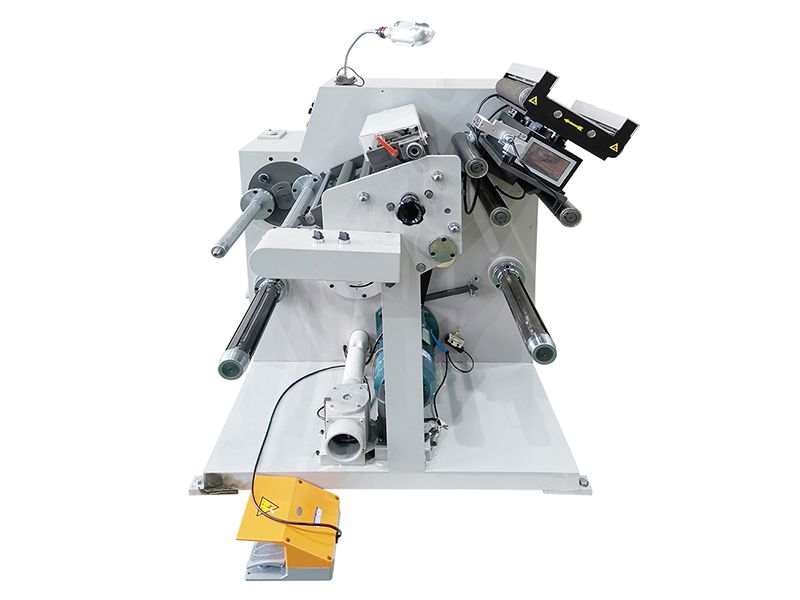

Fully Automatic Label Slitter Rewinder, DBFQS-320
Label converting machine
Fully Automatic Label Slitter Rewinder, DBFQS-320
Label converting machine
Our DBFQS-320 fully automatic label slitter rewinder is an upgraded version of the DBFQD-320. This fully automatic slitter rewinder retains all of the features of its predecessor, with added turret rewinding for easy switching between reels of different diameters. This slitter rewinder is suitable for narrow paper cutting in label production, with a meter counter, a piece counter, together with the turret rewinder for small rolls. The addition of air expanding shafts improves the efficiency of the slitting machine and the overall productivity of the label production line, making it suitable for cutting paper with different core diameters.

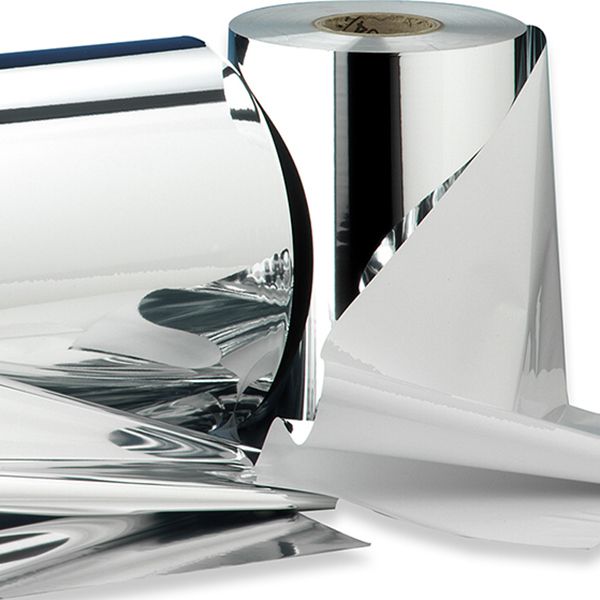

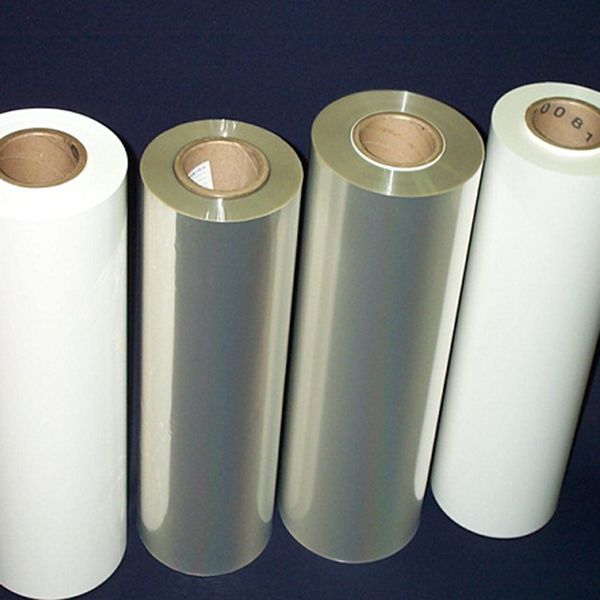

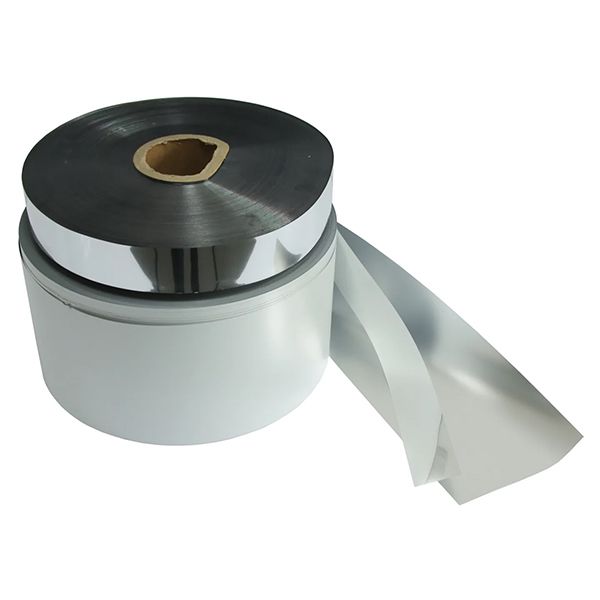

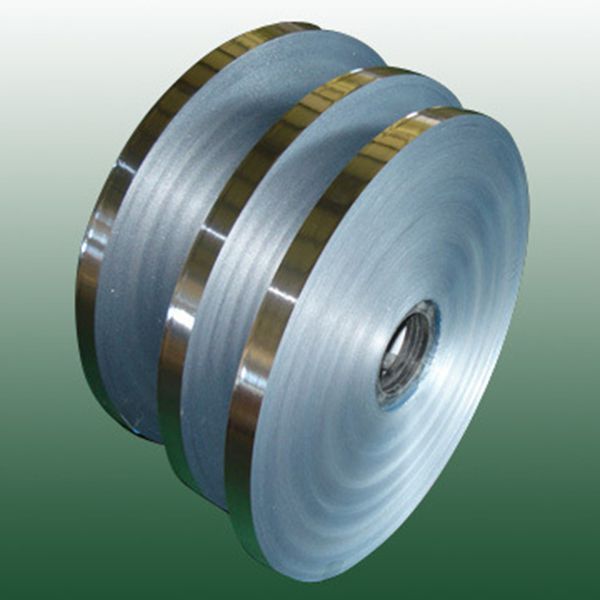

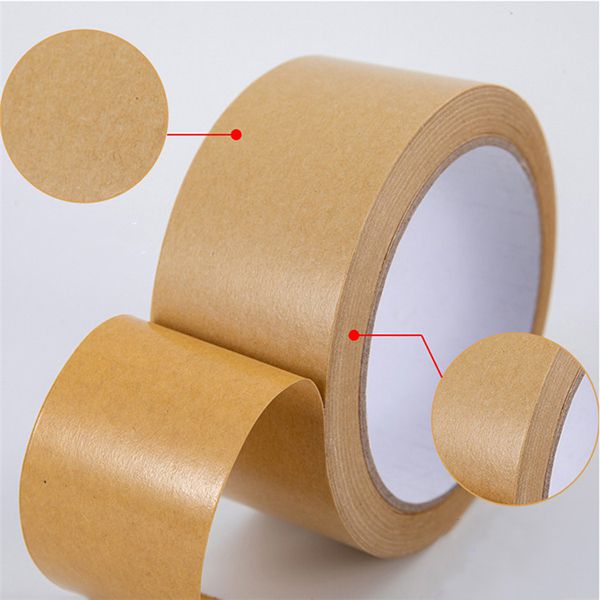

Self-adhesive matrix, thermal paper, cardboards, breathable films, aluminum foils, PVC, PET, etc.
Model | BDFQD-320 |
Dimensions (L*W*H) | 1400×950×150mm |
Maximum Unwinding Diameter | 700mm |
Maximum Rewinding Diameter | 600mm |
Maximum Slitting Width | 320mm |
Slitting Speed | 0-120m/min |
Total Power | 3kw |
Weight | 500kg |
- The main motor is controlled by a stepless frequency timing system.
- Automatic counter alerts and stops the machine when reaching preset limits.
- EPC (Edge Position Control) adopts dual photoelectric sensors.
- Air expanding shafts are used for rewinding and unwinding, making it convenient for material handling.
