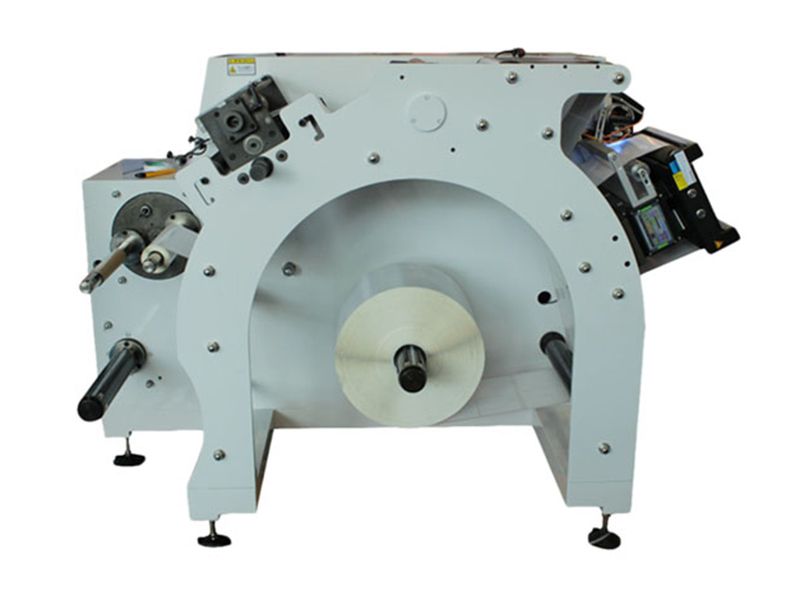

High Speed Narrow Web Slitter Rewinder, DBFQ-370

Label converting machine

High Speed Narrow Web Slitter Rewinder, DBFQ-370

Label converting machine

Daba Machinery offers you a high speed narrow web slitter rewinder among our label production lines. The high speed narrow web slitter rewinder can cut materials with widths ranging from 20mm to 370mm at a maximum speed of 200 meters per minute, ensuring ultra-high efficiency cutting. With easy length adjustment and user-friendly controls, it offers both manual and automatic modes. Suitable for cutting various narrow and thin rolls of materials.

Request a Quote

Model: DBFQ-370
Maximum Substrate Width: 370mm
Maximum Slitting Width: 370mm
Minimum Slitting Width: 20mm
Maximum Slitting Speed: 200m/min
Automatic Tension Control: Yes
Maximum Unwinding Diameter: 700mm
Maximum Rewinding Diameter (Upper Rewinder): 250mm
Maximum Rewinding Diameter: 700mm
Slitter: Round/square optional
Number of Slitters: 6 (standard)
Number of Rewinders: 3
Upper Rewinder: Turret style, equipped with one servo motor system

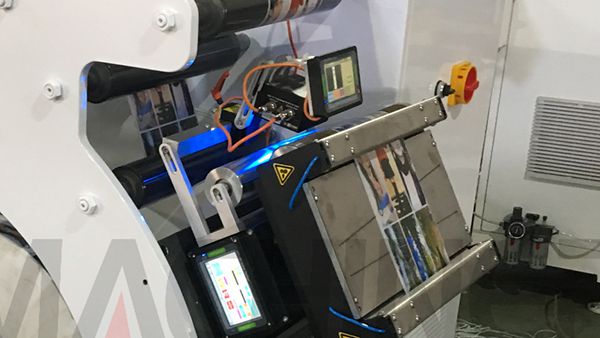

Guide Rail System: EURDOW (China)
Accuracy: ±0.1mm
Dimensions (L*W*H): 1700*1200*1300mm
Weight: 750kg

The unwinding unit adopts a high-precision photoelectric correction system.
Automatic tension control system is equipped for unwinding and rewinding.
The slitting machine has functions of automatic stop and length counting.
Equipped with a trimming device with a blower disposing waste materials.
